BOM Gerber Files PCBA Manufacturer Electronic PCB Assembly Service
- Samples:
- Customization:
-
Customized logo (Min. Order: 50 Pieces)Customized packaging (Min. Order: 50 Pieces)
More
Graphic customization (Min. Order: 50 Pieces) Less
- Model Number:
-
FC-pcb00451
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Fulltronics
- Base Material:
-
FR-4/aluminum/ceramic/cem-3/FR-1
- Copper Thickness:
-
0.25 Oz -12 Oz
- Board Thickness:
-
0.2mm--3.2mm
- Min. Hole Size:
-
0.075mm(3mil)
- Min. Line Width:
-
0.1mm/4mil
- Min. Line Spacing:
-
0.1mm/4mil
- Surface Finishing:
-
HASL Lead Free
- Name:
-
Electronics prototype pcb printed circuit board fabrication
- Soldermask:
-
Green, Red, Brown, White
- Product name:
-
pcb
- Silkscreen:
-
White
- Design service:
-
Available
- Other service:
-
Components purchase and assembly
- Number of Layers:
-
Single, Double, Multilayers
- Delivery:
-
DHL/Fedex/UPS/EMS
- Lead Free Technology:
-
Yes
- Certificate:
-
RoHS, UL,SGS, ISO/TS16949, ISO9001
- Supply Ability:
- 50000 Square Meter/Square Meters per Month
- Packaging Details
- Vaccum package and standard carton outside
Electronics prototype pcb printed circuit board fabrication
- Port
- Shenzhen, HongKong
Online Customization
Fulltronics is a professional PCB, FPC and PCBA manufacturer for more than 12 years in China.
We are able to offer one station service for PCB design and fabrication,Components purchase,PCB assembly and E-test, help you to reduce the cost with higher quality.
Electronics prototype pcb printed circuit board fabrication include:
(1) Gerber data for all artwork layers
(2) Aperture list or lists for all layers
(3) Drill file in Gerber or Excellon format
(4) Drawings: Print should be hard copy or Gerber HPGL or DXF format
We provide 24-hour Quick Turn PCB service, 2-Hours reply engineering techniques questions, 2-Hour Quick PCB Quote.
Our PCBs are used for wide range of electronic products,
Like Medical devices, CCTV, Power supply, GPS, UPS, Set-top Box,Telecomunication ,LED, etc.
TECHNICAL DATA:
PCB Item | Manufacture Capacity |
Layer Counts | 1--20L |
Base Material | FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B) |
Material Thickness(mm) | 0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 |
Max board size(mm) | 1200x400mm |
Board Outline Tolerance | ±0.15mm |
Board Thickness | 0.4mm--3.2mm |
Thickness Tolerance | ±8% |
Minimum line/space | 0.1mm |
Min Annular Ring | 0.1mm |
SMD Pitch | 0.3mm |
Holes |
|
Min Hole Size(mechanical) | 0.2mm |
Min Hole Size(laser hole) | 0.1mm |
Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
Hole Position Tol | ±0.075mm |
Plating |
|
HASL/LF HAL | 2.5um |
Immersion Gold | Nickel 3-7um Au:1-5u'' |
Surface Finish | HAL,lead-free HAL,ENIG,Plated Gold,Immersion Gold,OSP |
Copper |
|
Copper Weight | 0.5--6oz |
Color |
|
Soldermask | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
Silkscreen | White, Black, Blue,Yellow |
Acceptable File Format | Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 |
Certificate | ROSH,ISO9001,UL |
Our PCBA Competence:
Stencil size/range: | 736x736mm |
Minimum IC pitch: | 0.30mm |
Maximum PCB size: | 1200*500mm |
Minimum PCB thickness: | 0.35mm |
Minimum chip size: | 0201 (0.2x0.1)/0603 (0.6 x 0.3mm) |
Maximum BGA size: | 74*74mm |
BGA ball pitch: | 1.00mm (minimum), 3.00mm (maximum) |
BGA ball diameter: | 0.40mm (minimum), 1.00mm (maximum) |
QFP lead pitch: | 0.38mm (minimum), 2.54mm (maximum) |
Frequency of stencil cleaning: | 1 time/5 to 10 pieces |
FULLTRONICS CORPORATION LIMITED is a Chinese-owned company based in Shenzhen, established in 2002, We work with our customers in designing and Cloning the electronics for their products. In addition, we manufacture completed PCB,FPC,SMT Assembly,COB Assembly , T/H Through Hole Assembly , Mold and Plastic injection, “box-build” controls that include enclosures, wire harnesses and overlays. Products are functionally tested and sent directly to the end-user.
An example of a typical customer would be one who is developing an electro-mechanical product but does not have the capability to design the electronics portion. We provide support from initial engineering design pecifications through manufacturing the end-product. We also work with customers that have in-house electronic engineering design teams. We assist with design efficiencies, manufacturability, reliability and improving quality during the manufacturing process. In this capacity we act as a contract manufacturer.

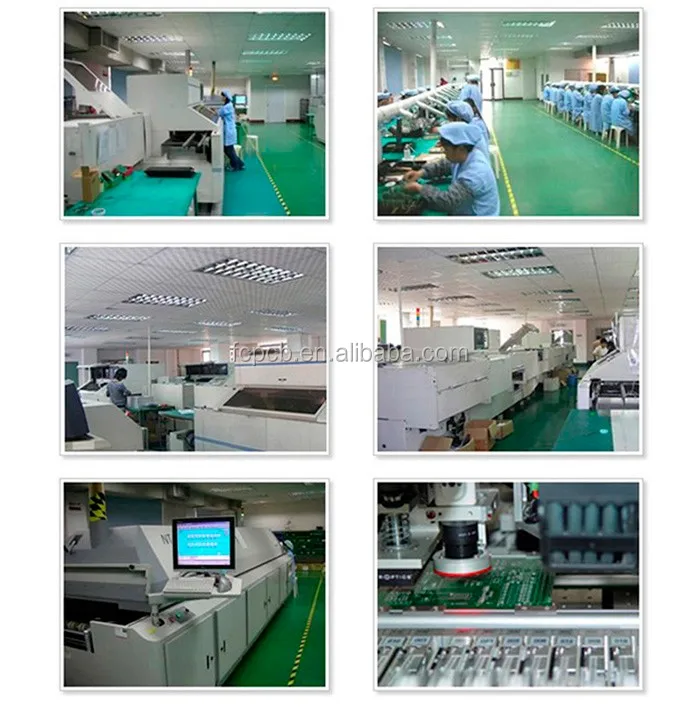

Our Factory
Why Fulltronics?
1. Fast quotation time.
2. Stable Lead Time For Production Orders.
3. Flexible Shipping Method and Payment terms:
4. With the greatest care and responsibility to packaging
and send to you 100% functional board products.
5. We are Alibaba Trade Assurance supplier and Gold supplier.
6. Contac us at any time ,we are always on line !
1. Are my design files secure when I send them to you?
Your files are held in complete safety and security.Your files are never shared nor will any third parties have access to your design files.Fulltronics can sign an NDA(Non-disclosure agreement) before sending files.
2. For small quantity orders, can you produce prototype PCBs?
Yes. Fulltronics can produce prototypes. but the greater the quantity, the greater the cost savings.
3. What file formats do you accept for PCB and assembly?
Gerber ,CAM Auto CAD DXF, DWG formats.
4. Do you have after-sales product servicing available for your customers?
Yes, for any quality problems Fulltronics will take our responsibility to solve it for you any time.
More details about us, kindly scan website: http://www.fc-pcb.com
If you send us your Gerber Files and PCB specification, we will quote for you within 12 hours.
