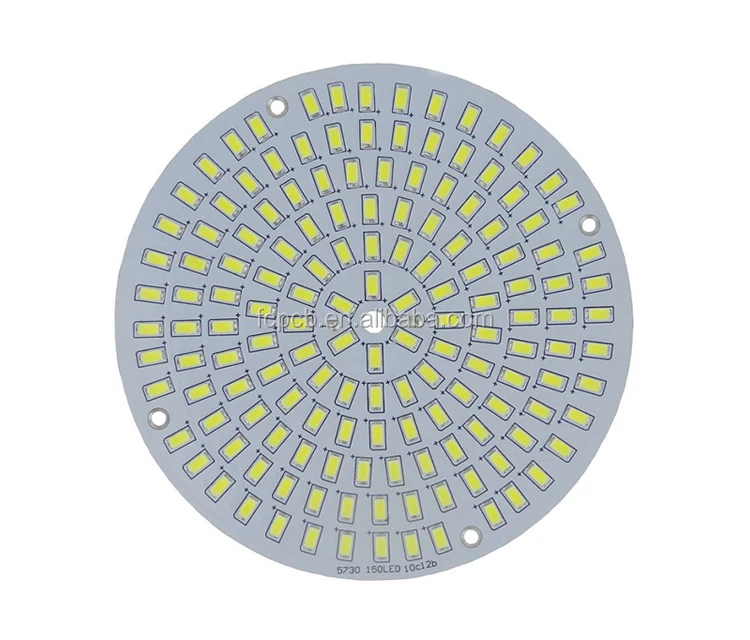

3w 5w 7w 9w 12w 15w 18w 24w 30w led light board smd led circuit board 5730 2835 5630 with pcba service

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Piece | 5 Piece/Pieces (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Model Number:
Place of Origin:
Guangdong, China
Surface Finishing:
HASL\OSP\immersion gold
Brand Name:
Min. Line Spacing:
Board Thickness:
Base Material:
FR4/94v0/Aluminum/cem-1 cem-3
Copper Thickness:
Min. Line Width:
Min. Hole Size:
FR4/94v0/Aluminum/cem-1 cem-3/......
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Anti-static package inside and standard carton outside
Lead Time :
2 weeks
Product Description



Our production capacity

PCB Item Manufacture Capacity

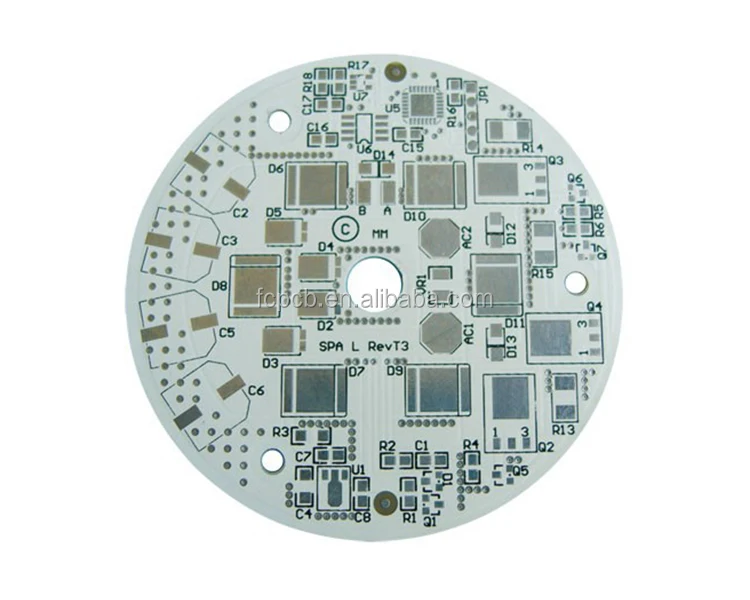

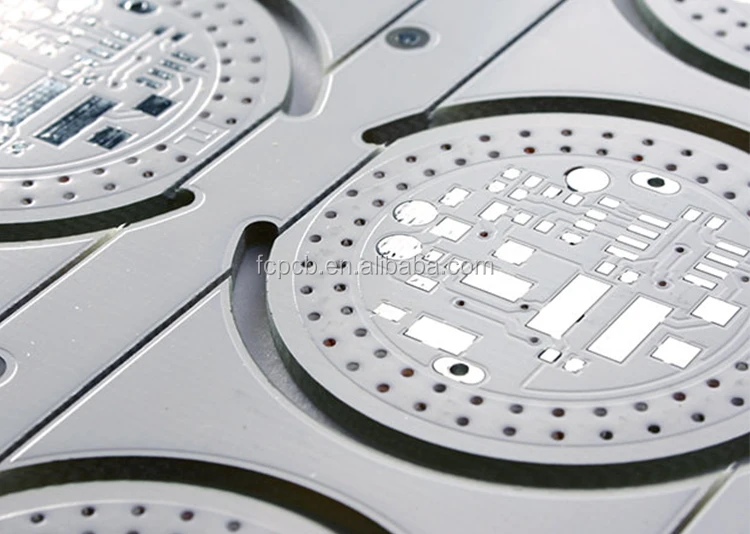

   Product Type   Al Clad PCB 1 layer~2 layer
   Maximum Panel size   20"*24" (1170mm*600mm)
   Copper thickness   0.5oz, 1oz, 2oz, 3oz and 4 oz
   Dielectric Thickness (to Substrate)   0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm
   Finished Board Thickness   0.4mm To 4.0mm
   Thickness Tolerance   +/-10%
   Aluminum Machining   Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available
   Min. Finish hole size   0.25mm
   Max.working voltage   2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric)
   Min.Track Width   0.2mm (8mils)
   Min.Track gap   0.2mm (8mils)
   Min. SMD pad pitch   0.2mm (8mils)
   Surface Finishing   HASL, HASL Leadfree, Immersion gold, Flash gold, OSP
   Soldermask color   White, Black, others Available
   Legend color   Black, White, others Available
   Etest   YES
   RohsL   YES
   Reference Standard   IPC-A-600G Class 2
   Special holes   Spot facing, Cup holes
   Data Input   Data Input




Sample Lead time

Mass production lead time

Single sided PCB



Double sided PCB



Multilayer PCB



PCB and Assembly

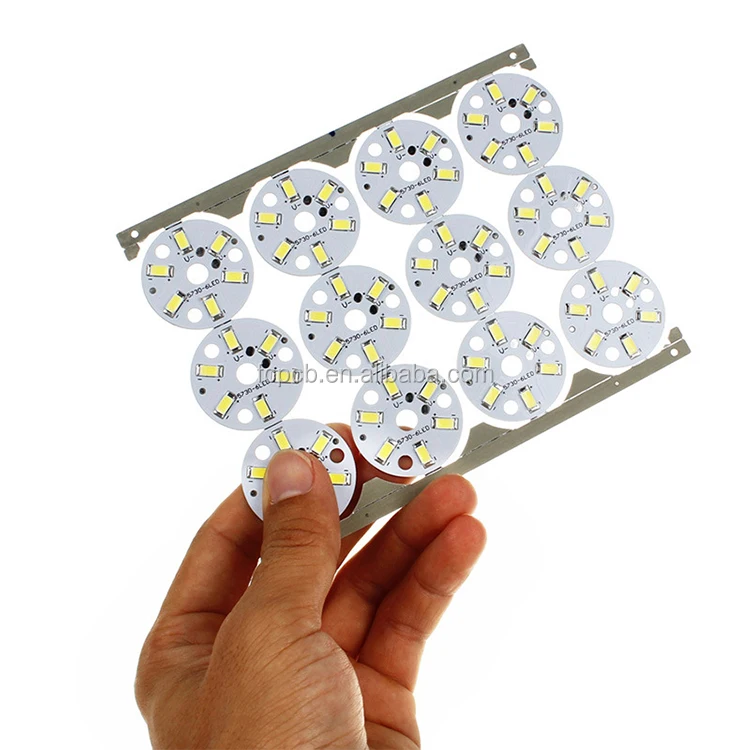

3w 5w 7w 9w 12w 15w 18w 24w 30w led light board smd led circuit board 5730 2835 5630 with pcba service

OEM/ODM/EMS Services for PCBA:

  • PCBA, PCB Board assembly: SMT & PTH & BGA
  • PCBA and enclosure design
  • Components sourcing and purchasing
  • Quick prototyping
  • Plastic injection molding
  • Metal sheet stamping
  • Final assembly
  • Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
  • Custom clearance for material importing and product exporting

Capability - SMT

  • Lines                   9(5 Yamaha,4KME)
  • Capacity                 52 million placements per month
  • Max Board Size           457*356mm.(18”X14”)
  • Min Component size       0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP
  • Speed                   0.15 sec/chip,0.7 sec/QFP

Capability - PTH

  • Lines                   2
  • Max board width         400 mm
  • Type                   Dual wave
  • Pbs status               Lead-free line support
  • Max temp               399 degree C
  • Spray flux               add-on
  • Pre-heat                 3

       Product Type







          To ensure an accurate quote, be sure to include the following information for your project:

          •Complete GERBER files including the BOM list
          •Other file types (Altium,Protel,OrCAD)
          •"Read Me" notes for additional fabrication information
          •Turn time
          •Panelization Requirements
          •Materials Requirements
          •Finish requirements
          Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.




          AOI Testing
                              Checks for solder paste
                              Checks for components down to 0201"
                              Checks for missing components, offset, incorrect parts, polarity
          X-Ray Inspection
                              X-Ray provides high-resolution inspection of:
                              Micro BGAs
                              Chip scale packages
                              Bare boards
          In-Circuit Testing
                              In-Circuit Testing is commonly used in conjunction with AOI minimizing functional
                              defects caused by component problems.
          Power-up Test
                              Advanced Function Test
                              Flash Device Programming
                              Functional testing



                              We purchase material from Original Company and distributers.
                              We make products by strict engineer processes.
                              We have strict inspection processes.
                              We send products by vaccum package,antistatic package and carton box.



          1. Are my design files secure when I send them to you?


          Your files are held in complete safety and security.Your files are never shared nor will any third               parties have access to your design files.Fulltronics can sign an NDA(Non-disclosure                               agreement) before sending files.


          2. For small quantity orders, can you produce prototype PCBs?


          Yes. Fulltronics can produce prototypes. but the greater the quantity, the greater the cost                         savings.


          3. What file formats do you accept for PCB and assembly?


          Gerber ,CAM Auto CAD DXF, DWG formats.


          4. Do you have after-sales product servicing available for your customers?


          Yes, for any quality problems Fulltronics will take our responsibility to solve it for you any time.
