double sided pcb,high frequency circuit board,low cost pcb fabrication

FOB Reference Price:Get Latest Price
$0.10 - $5.00 / Piece | 5 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM, FC LED pcb
Model Number:
Customized
Min. Hole Size:
0.25mm, 0.2 mm
Copper Thickness:
1OZ, min:0.02mm (through hole)
Min. Line Width:
3mi
Board Thickness:
1.2mm, 0.5mm - 3.0mm
Base Material:
FR4, CM-1 CM-3 FR-4 FR-1 AL-PCB
Min. Line Spacing:
0.003"
Surface Finishing:
Immersion gold/HASL/OSP, HASL OSP Immersion Tin/Gold/Silver Carbon Oil
pcb assembly Surface processing 1:
OSP
Testing:
Function testing
design service:
Available
Layer:
double sided
Supply Ability
Supply Ability:
1000000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
vacuum packing, anti-static package or in your requirements.
Port
Shenzhen, Hong Kong
Lead Time :
1-2 weeks
Product Description





Our production capacity

PCB Item Manufacture Capacity
   Layer Counts   1--20L
   Base Material   FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)
   Material Thickness(mm)   0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2
   Max board size(mm)   1200x400mm
   Board Outline Tolerance   ±0.15mm
   Board Thickness   0.4mm--3.2mm
   Thickness Tolerance   ±8%
   Minimum line/space   0.1mm
   Min Annular Ring   0.1mm
   SMD Pitch   0.3mm
Holes
   Min  Hole Size(mechanical)   0.2mm
   Min Hole Size(laser hole)   0.1mm
   Hole Size Tol (+/-)   PTH:±0.075mm;NPTH: ±0.05mm
   Hole Position Tol   ±0.075mm
Plating
   HASL/LF HAL   2.5um
   Immersion Gold   Nickel  3-7um  Au:1-5u''
   Surface Finish   HAL,ENIG,Plated Gold,Immersion Gold,OSP
   Copper
   Copper Weight   0.5--6oz
Color
   Solder mask   Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
   Silk screen   White, Black, Blue,Yellow
   Acceptable File Format   Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000
   Certificate   ROSH,ISO9001,UL



PCB Assembly Capability



   Stencil Size   736x736mm
   Minimum IC Pitch   0.2mm
   Maximum PCB size   1200x 500mm
   Minimum PCB thickness   0.25mm
   Minimum chip size:   0201 (0.2x0.1)/0603 (0.6 x 0.3mm)
   Maximum BGA size:   74x74mm
   BGA ball pitch:   1.00mm (minimum), 3.00mm (maximum)
   BGA ball diameter:   0.40mm (minimum), 1.00mm (maximum)
   QFP lead pitch:   0.38mm (minimum), 2.54mm (maximum)
   Volume:   One piece to low volume production quantities
   Low cost first article builds
   Schedule deliveries
   Assembly type:   Surface mount(SMT) assembly
   DIP assembly
   Mixed(surface mount and through hole) technology
   Single or double sided placement
   Cable assembly
   Components type:   Passive components:
   As small as 0402 package
   As small as 0201 with design review
   Ball Grid Arrays(BGA):
   As small as .5mm pitch
   Parts procurements:   Turnkey(we supply the parts)
   Consigned(you supply the parts)
   You supply some parts, we do the rest
   Solder type:   Leaded
   Lead-free/ROHS compliant
   Other capabilities:   Repair/rework services
   Mechanical assembly
   Box build
   Mold and plastic injection.









OEM/ODM/EMS Services for PCBA:

  • PCBA, PCB Board assembly: SMT & PTH & BGA
  • PCBA and enclosure design
  • Components sourcing and purchasing
  • Quick prototyping
  • Plastic injection molding
  • Metal sheet stamping
  • Final assembly
  • Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
  • Custom clearance for material importing and product exporting

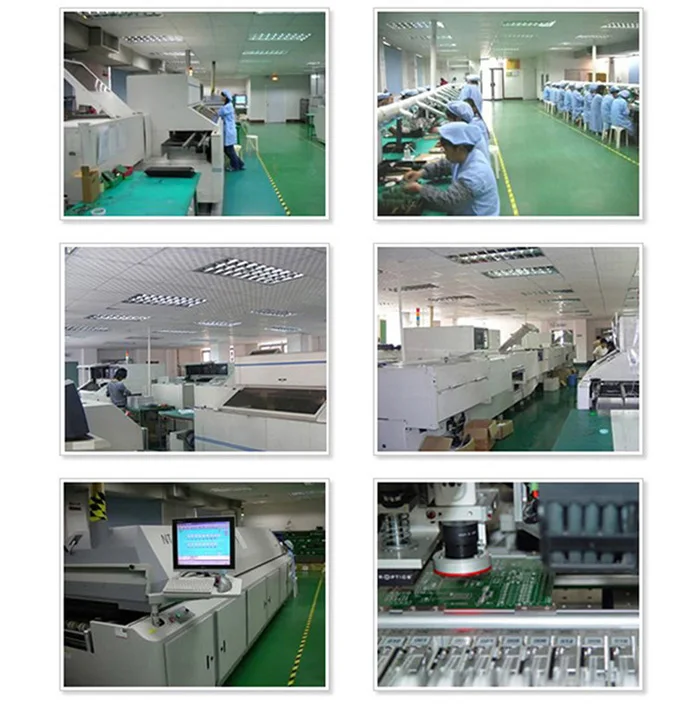

Capability - SMT

  • Lines                   9(5 Yamaha,4KME)
  • Capacity                 52 million placements per month
  • Max Board Size           457*356mm.(18”X14”)
  • Min Component size       0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP
  • Speed                   0.15 sec/chip,0.7 sec/QFP

Capability - PTH

  • Lines                   2
  • Max board width         400 mm
  • Type                   Dual wave
  • Pbs status               Lead-free line support
  • Max temp               399 degree C
  • Spray flux               add-on
  • Pre-heat                 3

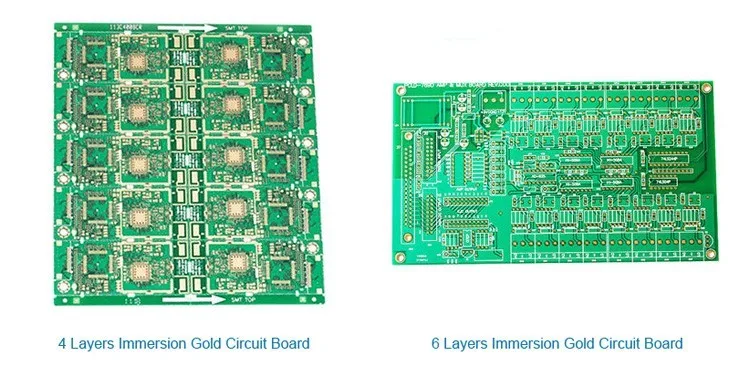

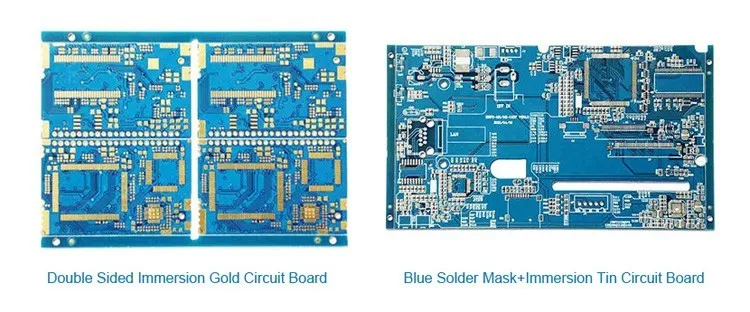

double sided pcb,high frequency circuit board,low cost pcb fabrication




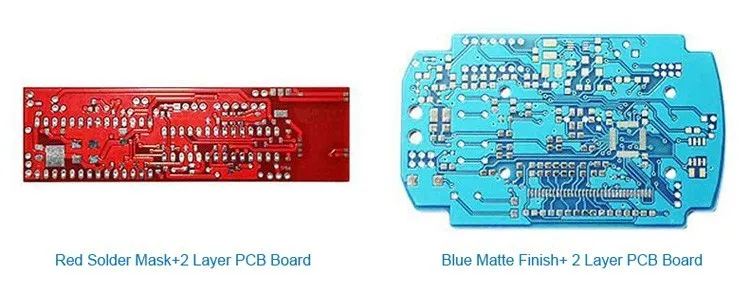

2 layer fr4 electronics pcb board









          To ensure an accurate quote, be sure to include the following information for your project:

          •Complete GERBER files including the BOM list
          •Other file types (Altium,Protel,OrCAD)
          •"Read Me" notes for additional fabrication information
          •Quantities
          •Turn time
          •Panelization Requirements
          •Materials Requirements
          •Finish requirements
          Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.








          AOI Testing
                              Checks for solder paste
                              Checks for components down to 0201"
                              Checks for missing components, offset, incorrect parts, polarity
          X-Ray Inspection
                              X-Ray provides high-resolution inspection of:
                              BGAs
                              Micro BGAs
                              Chip scale packages
                              Bare boards
          In-Circuit Testing
                              In-Circuit Testing is commonly used in conjunction with AOI minimizing functional
                              defects caused by component problems.
          Power-up Test
                              Advanced Function Test
                              Flash Device Programming
                              Functional testing






                              We purchase material from Original Company and distributers.
                              We make products by strict engineer processes.
                              We have strict inspection processes.
                              We send products by vaccum package,antistatic package and carton box.







          1. Are my design files secure when I send them to you?



          Your files are held in complete safety and security.Your files are never shared nor will any third parties have access to your design files.Fulltronics can sign an NDA(Non-disclosure                               agreement) before sending files.



          2. For small quantity orders, can you produce prototype PCBs?



          Yes. Fulltronics can produce prototypes. but the greater the quantity, the greater the cost savings.



          3. What file formats do you accept for PCB and assembly?



          Gerber ,CAM Auto CAD DXF, DWG formats.



          4. Do you have after-sales product servicing available for your customers?



          Yes, for any quality problems Fulltronics will take our responsibility to solve it for you any time.
